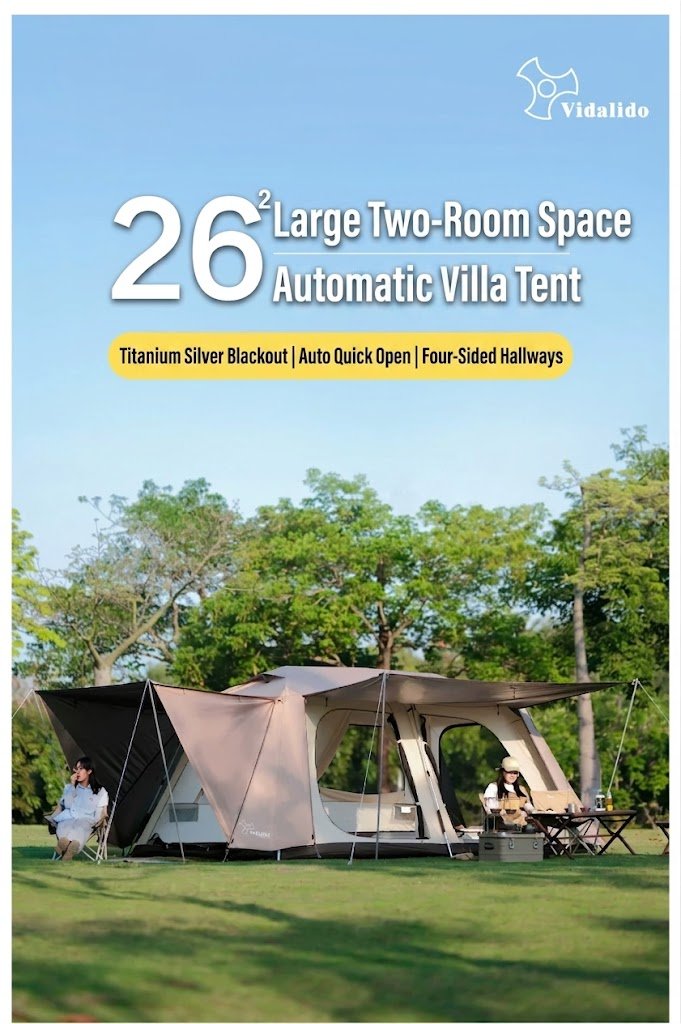

Vicore Series
Two rooms, four porches, and about 26 m² of ground once everything is out. One lift, one pull, and the frame is standing.
An auto-open villa tent built for a family that stays put for a few days rather than moving every night. The large size has a fixed divider down the middle, so it is genuinely two rooms.
Setup
Watch it go up
The frame is one linked aluminium assembly. Lift the hub, pull the sides out, peg the corners. The video runs through it end to end.
Full setup walkthrough
Choose a size

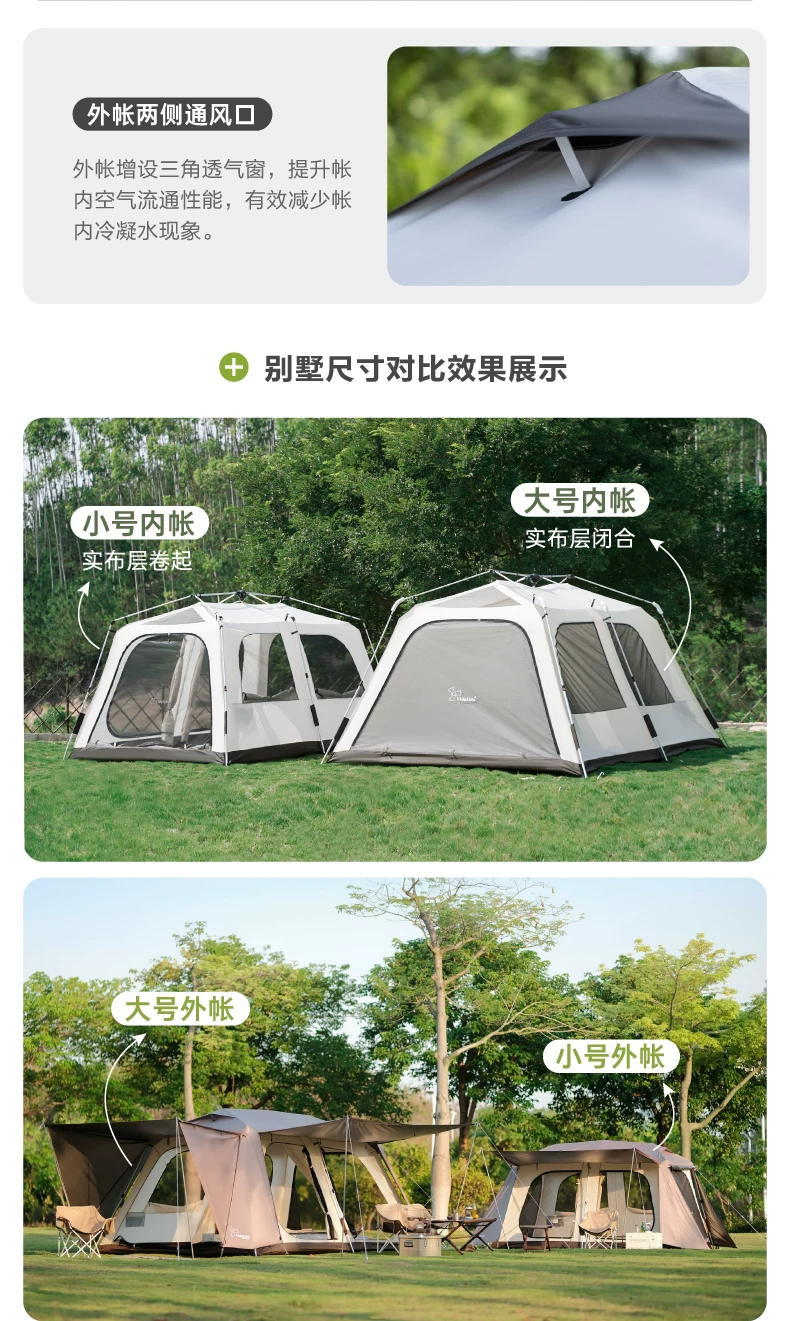

Small or Large
Same fabric, frame and coating in both. The large adds a fixed divider, a taller peak and a bigger footprint.
| Small | Large | |
| Fly size | 420 × 230 × 180 cm | 500 × 280 × 190 cm |
| Inner tent | 320 × 220 × 170 cm | 400 × 270 × 180 cm |
| Peak height | 170 cm | 180 cm |
| Divider | None — one room | Fixed — two rooms |
| Sleeps | 4–6 | 6–8 |
| Lounging | 8–10 | 10–12 |
| Packed | 25 × 25 × 101 cm | 26 × 26 × 113 cm |
| Weight | 14.7 kg | 17.4 kg |
| Porch poles | 16 mm × 1.7 m × 2 | 16 mm × 1.8 m × 2 |
| Price | $520 | $700 |
Space

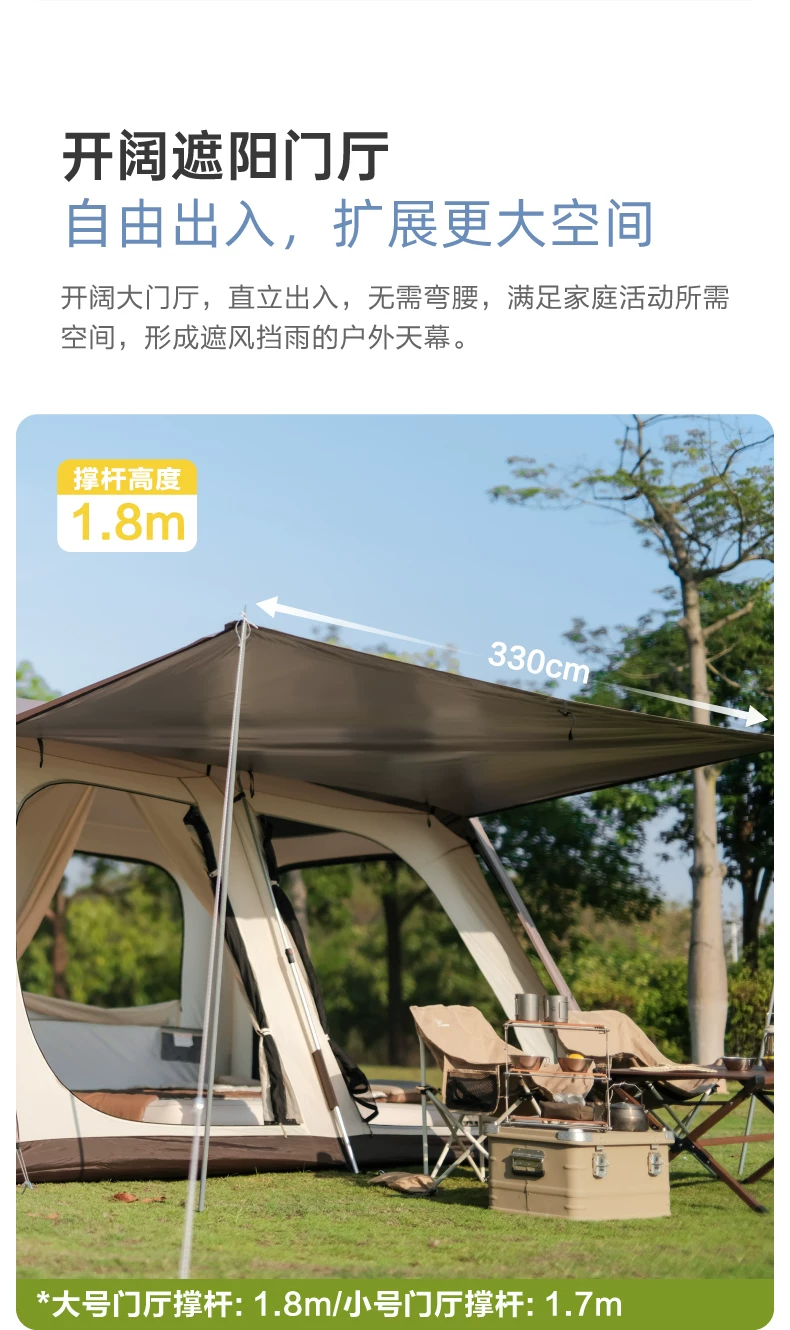

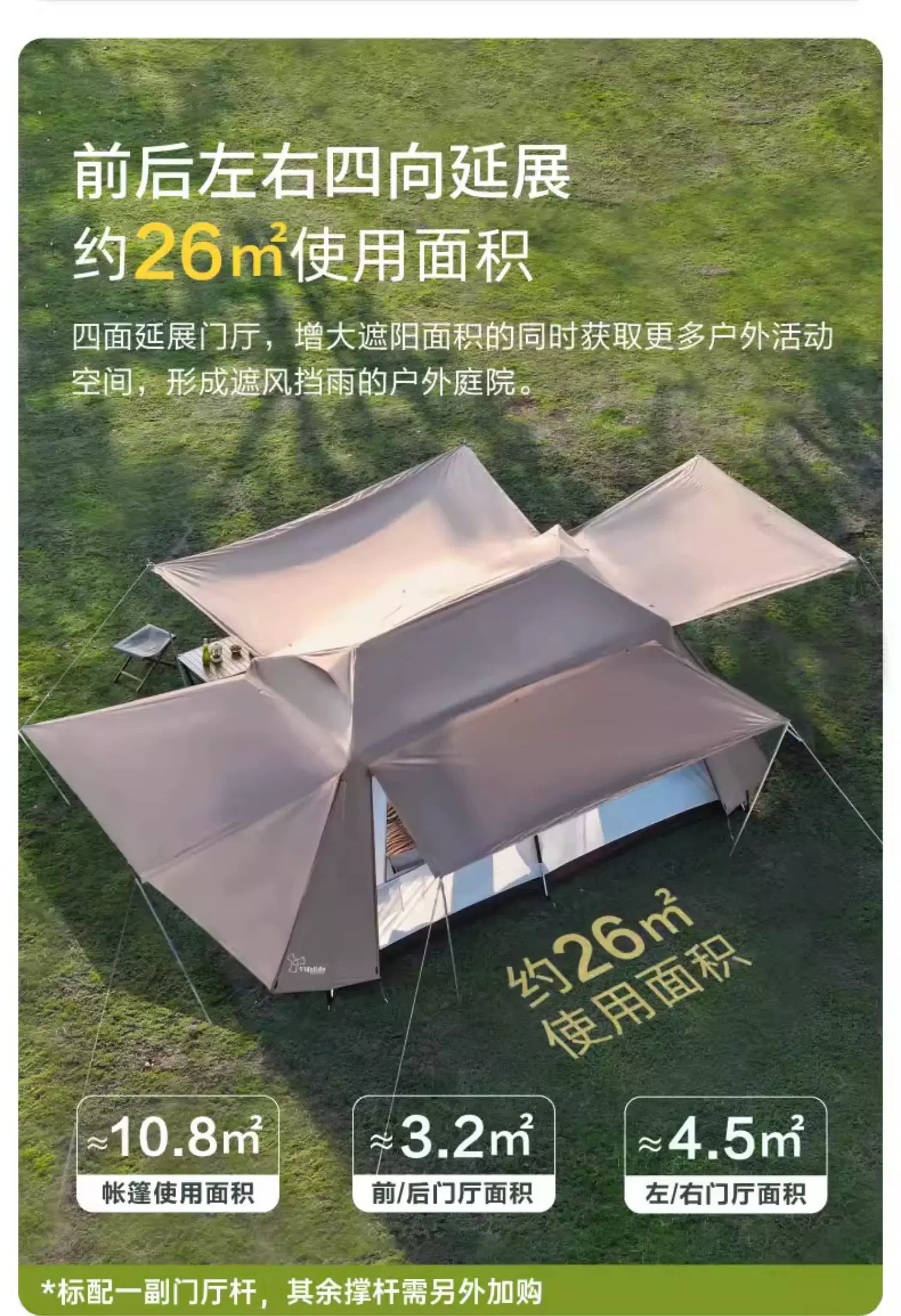

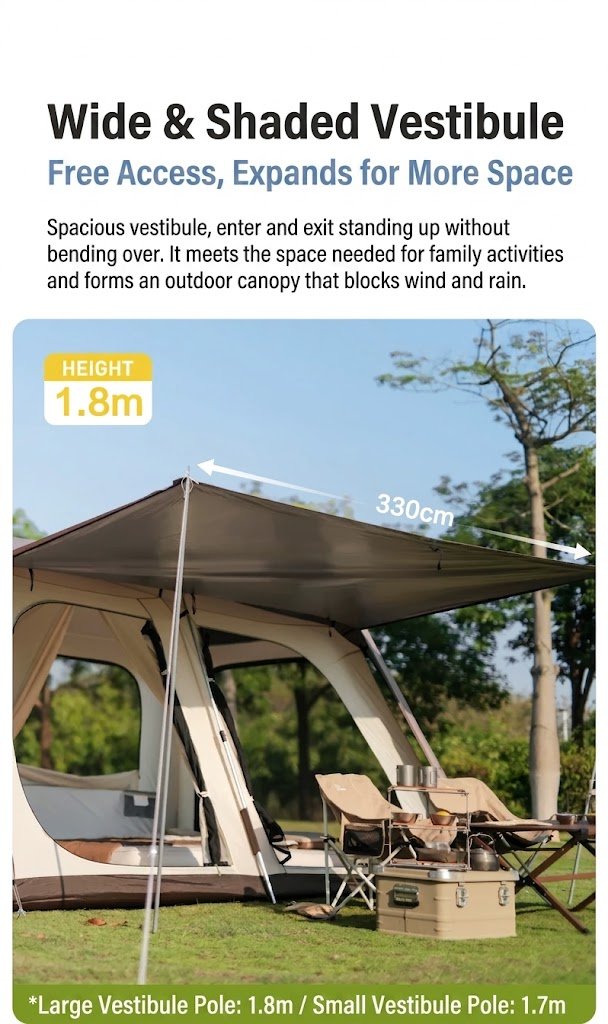

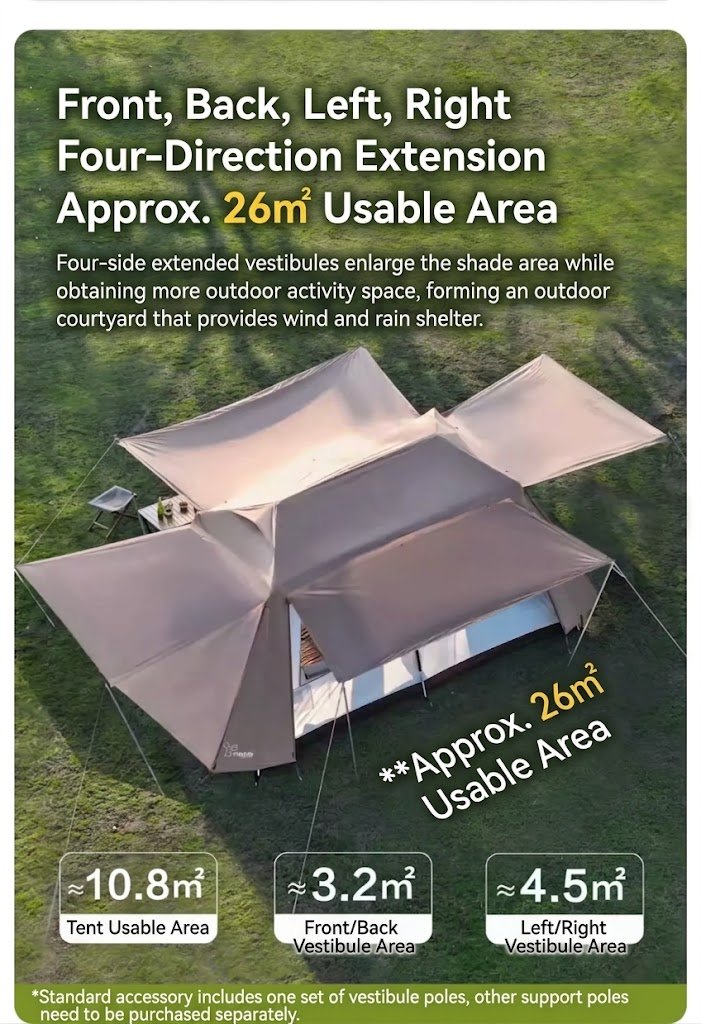

Porches on all four sides
Roll out the front, back, left and right porches and the footprint roughly doubles — an outdoor courtyard under cover rather than a tent you sit inside.

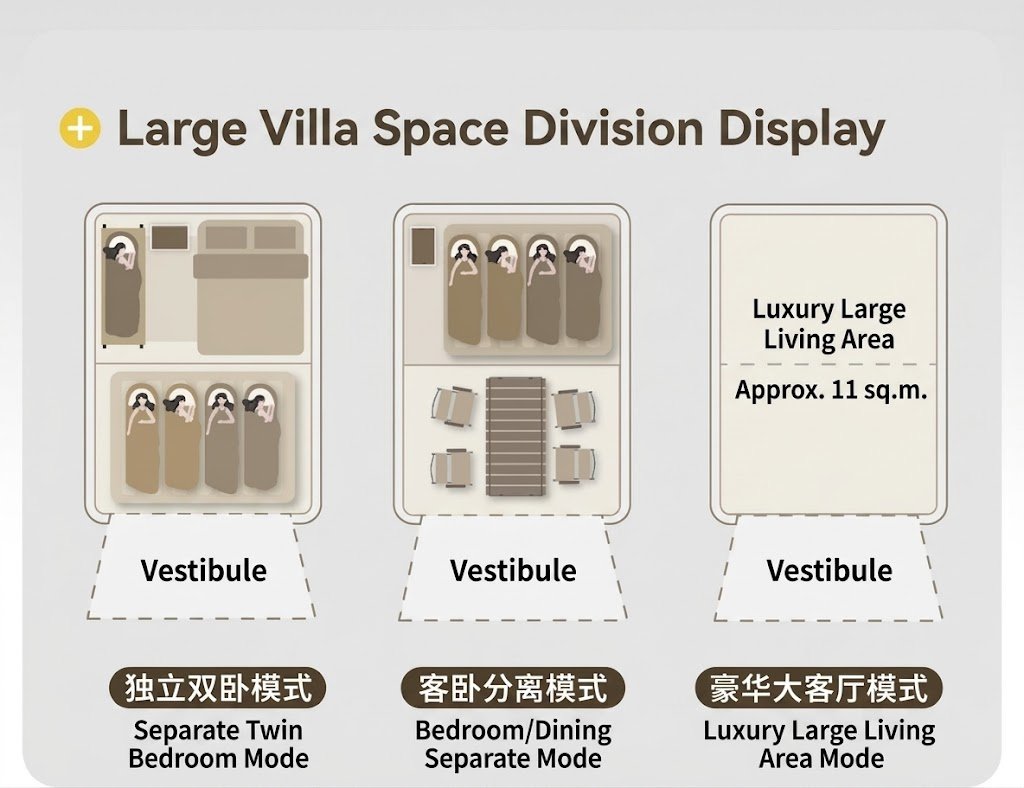

Layouts

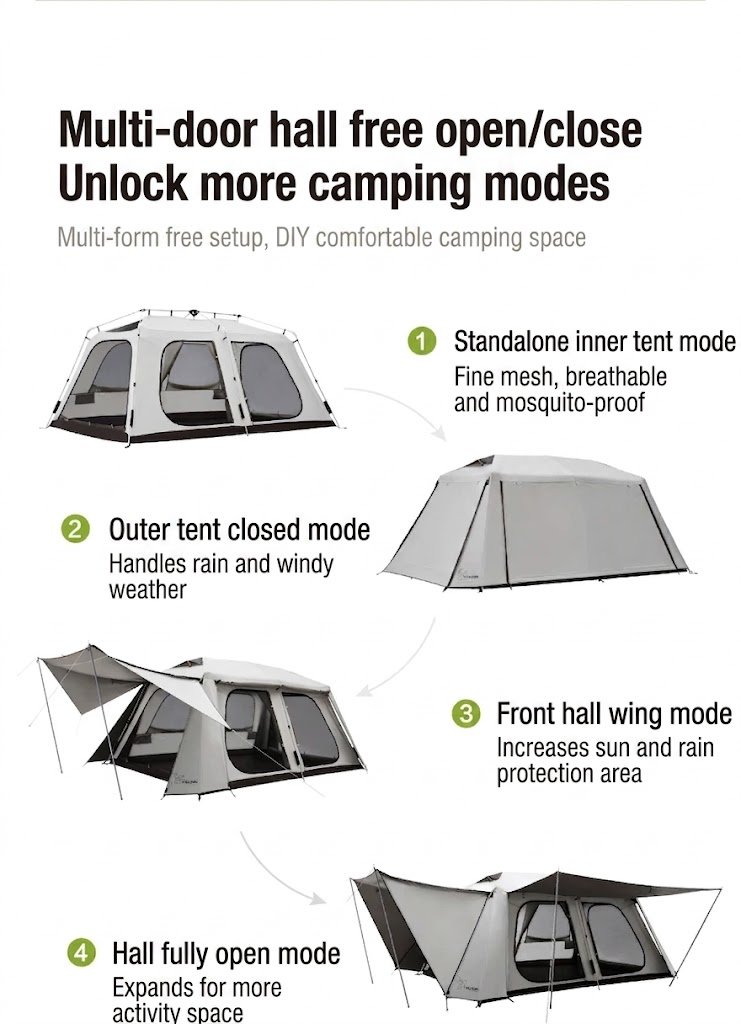

Open it however the day needs

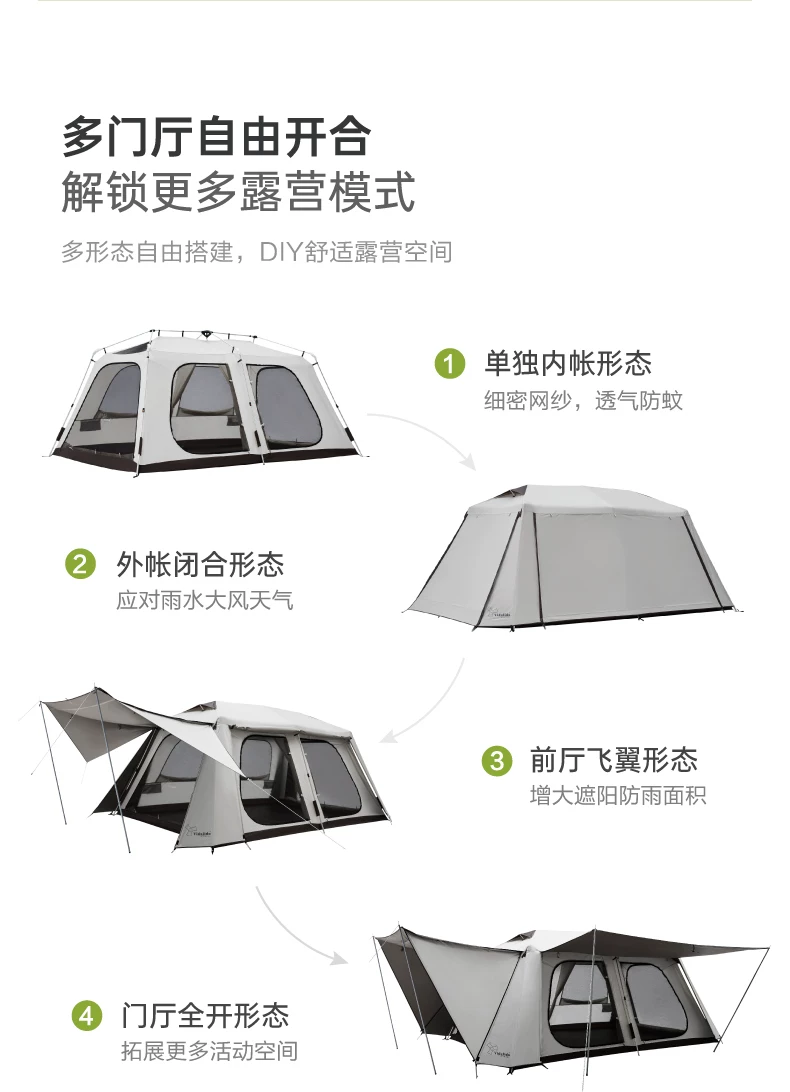

Inner tent alone for a hot night, fly closed against weather, front wing out for shade, or everything open. The large size splits into two bedrooms, a bedroom plus living room, or one big lounge.
Inside

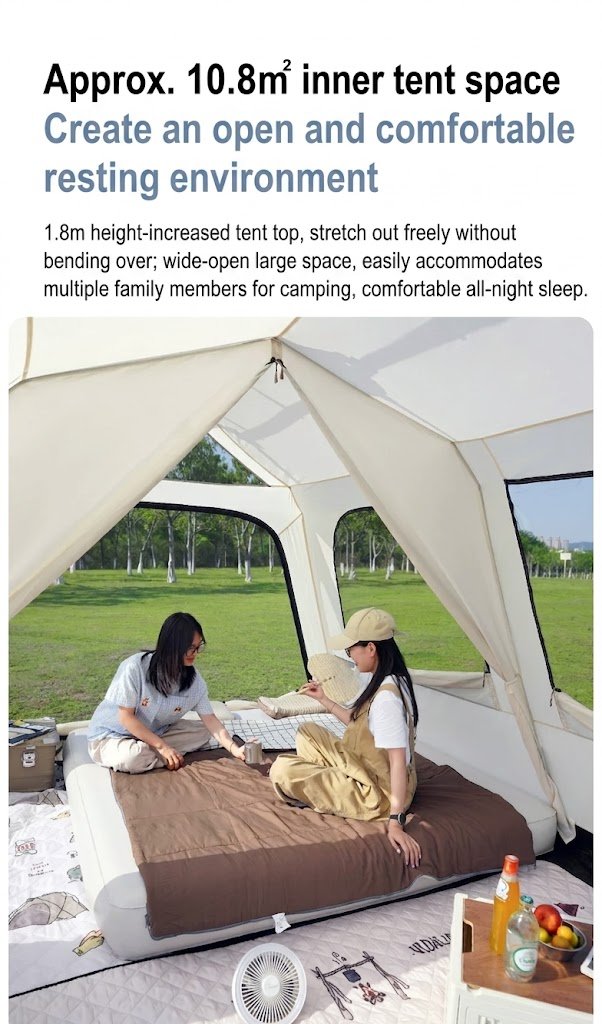

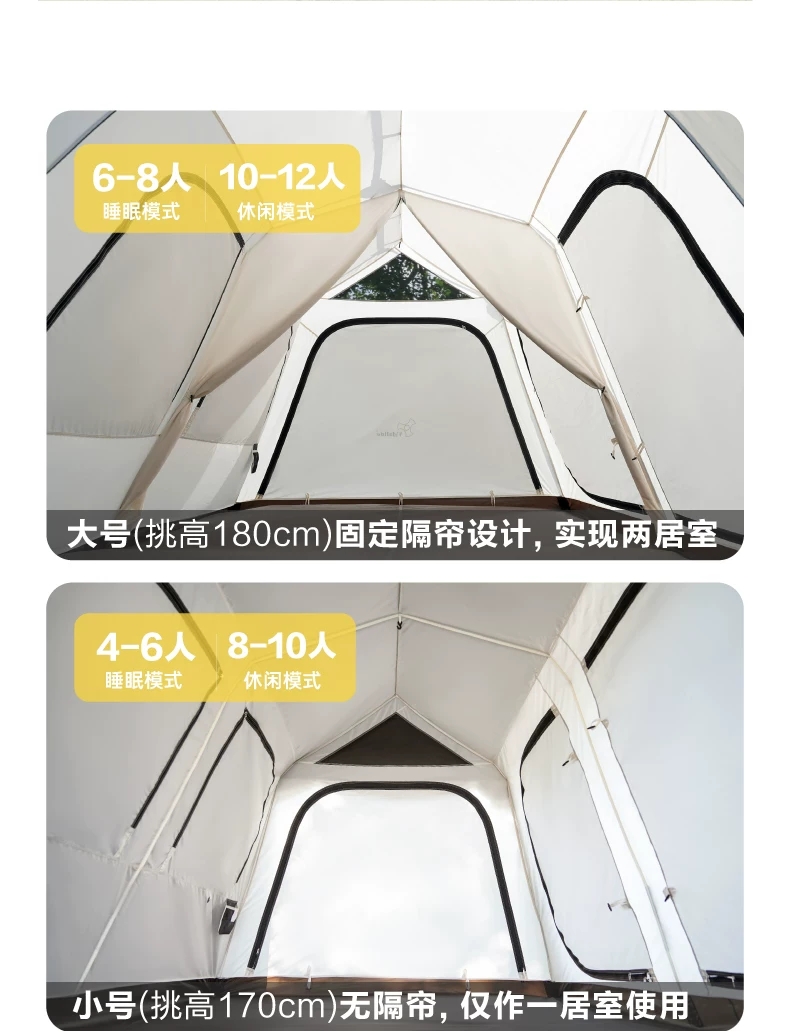

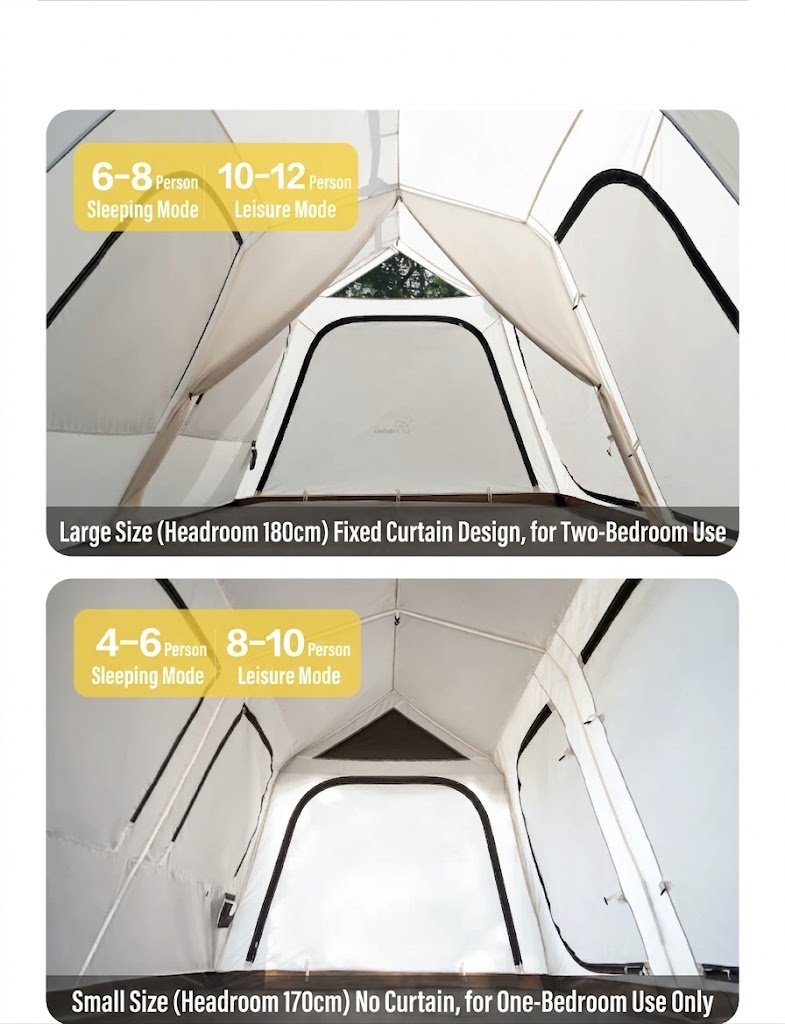

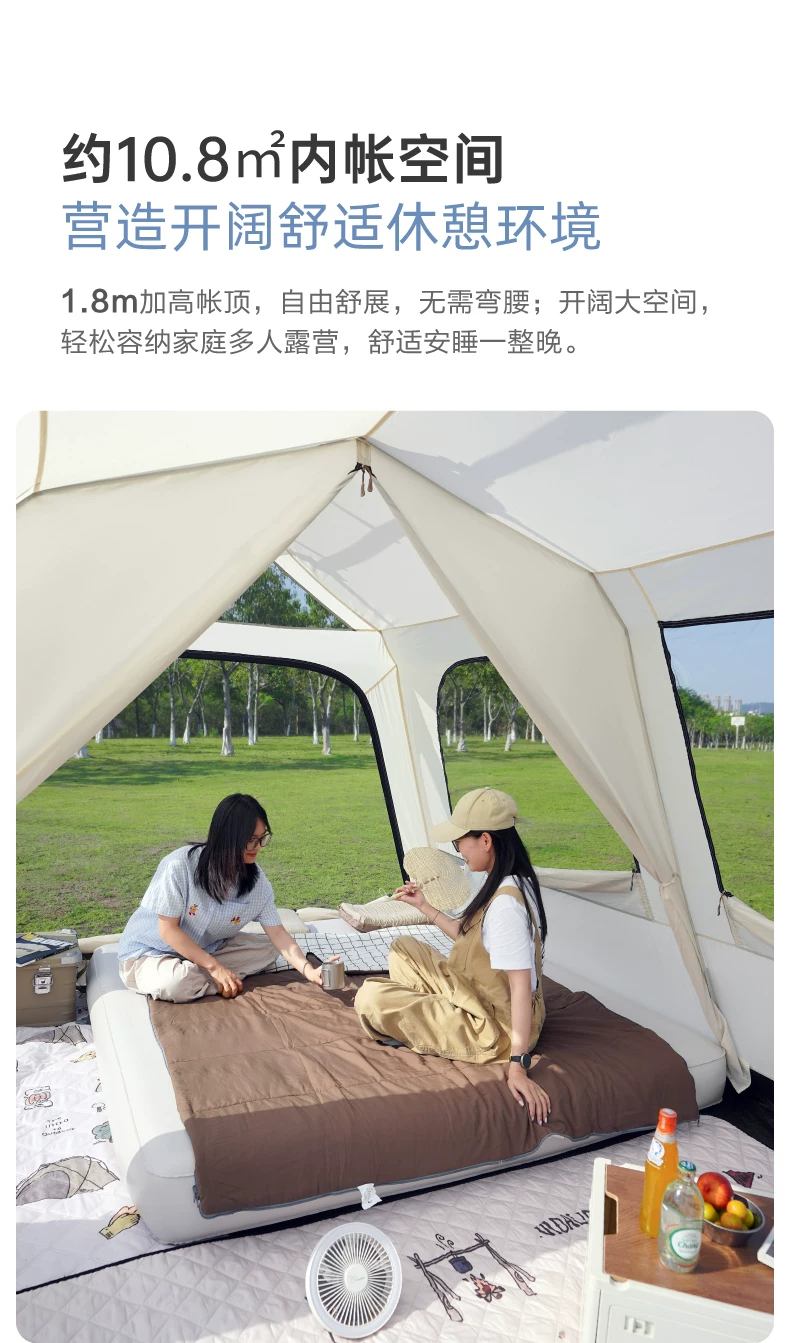

About 10.8 m² and 1.8 m of headroom

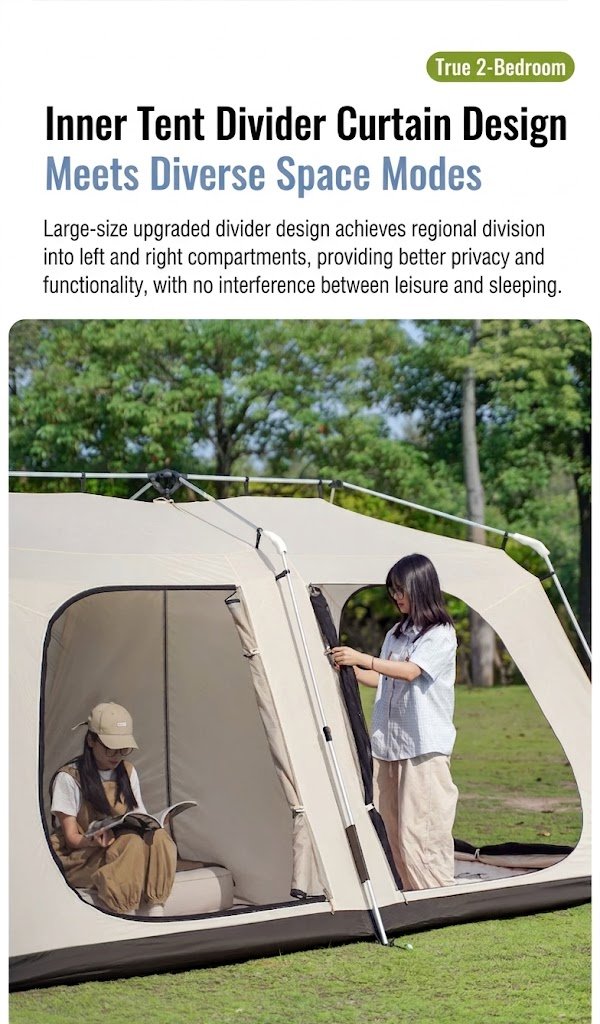

You stand up in it. The divider curtain on the large size gives two closed sleeping areas so people can turn in at different times.

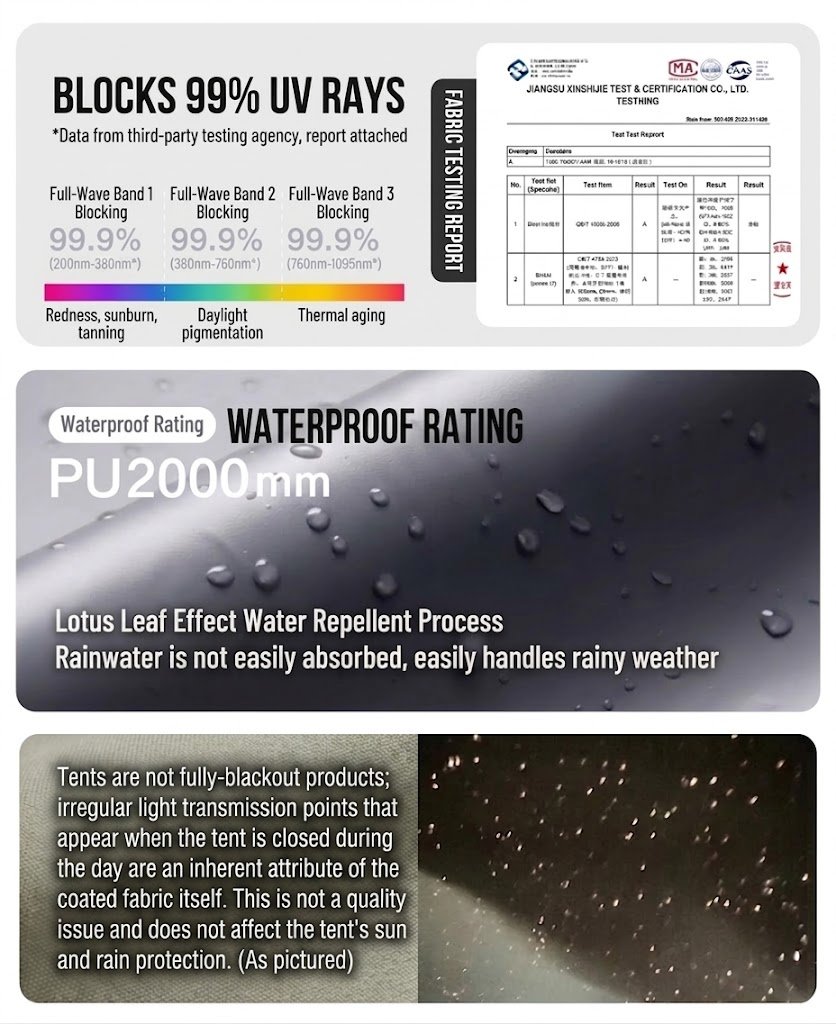

Sun and rain

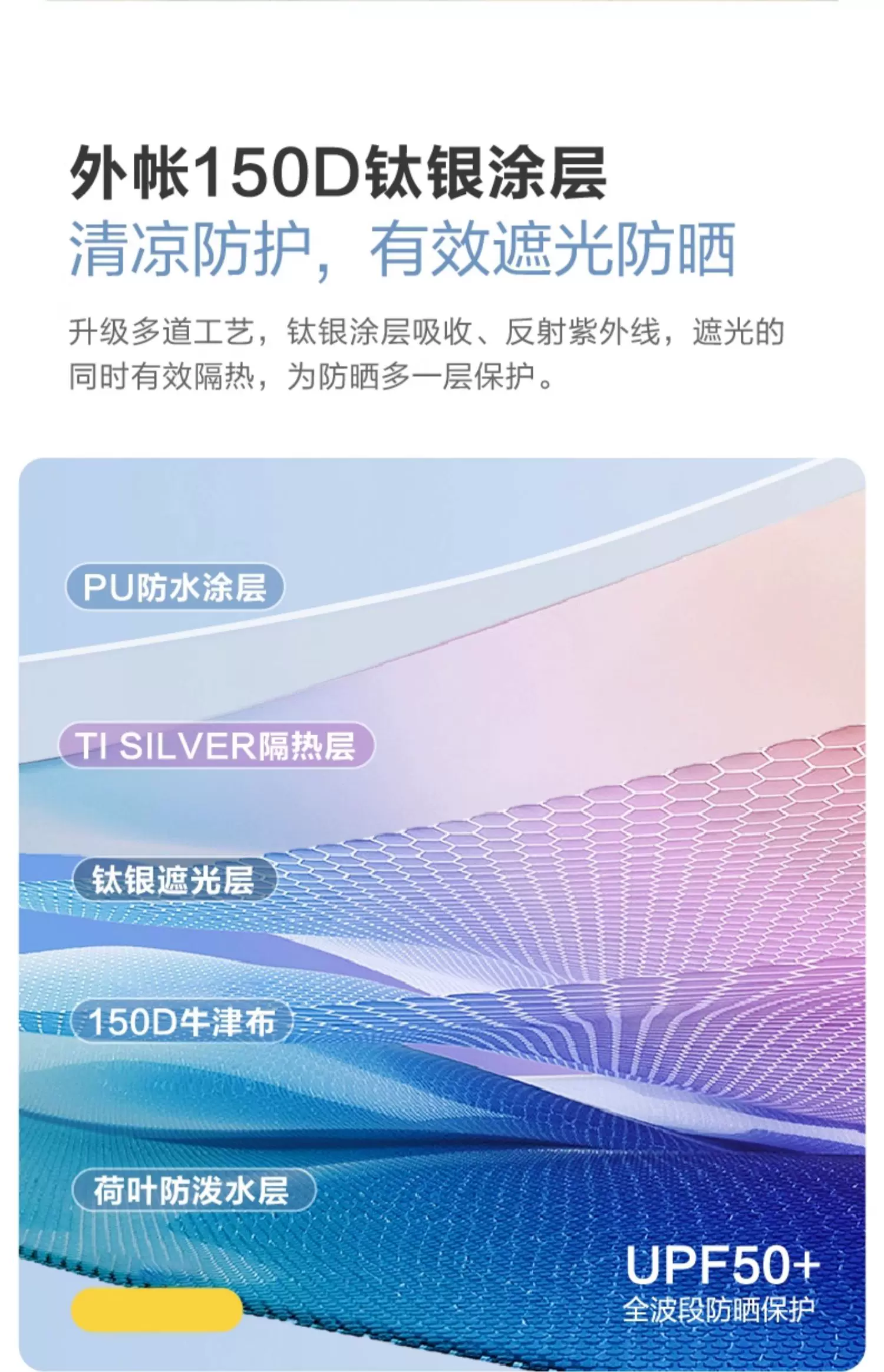

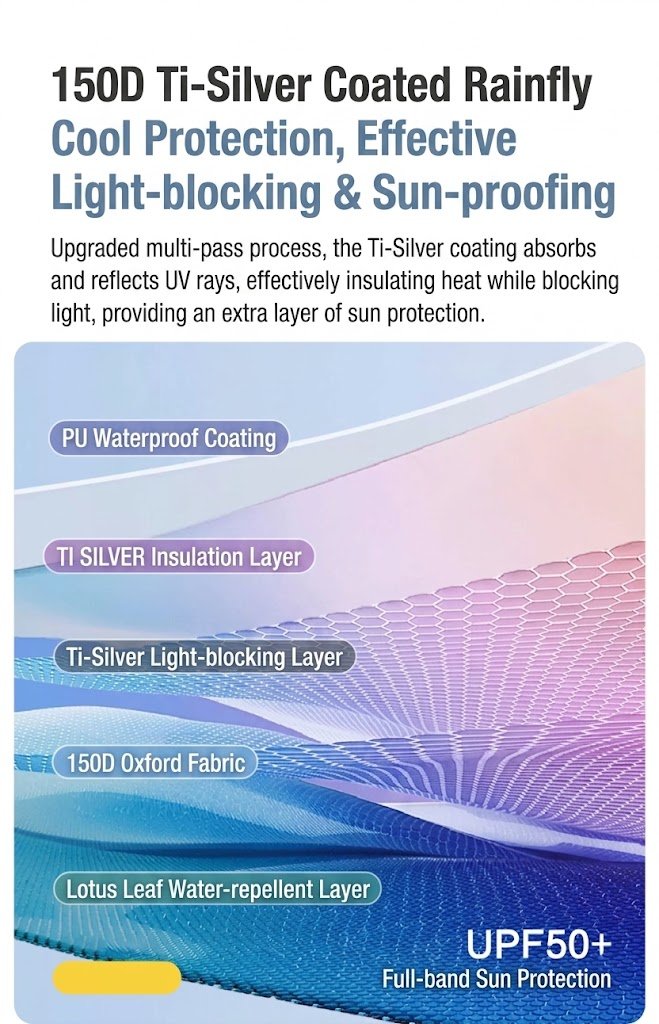

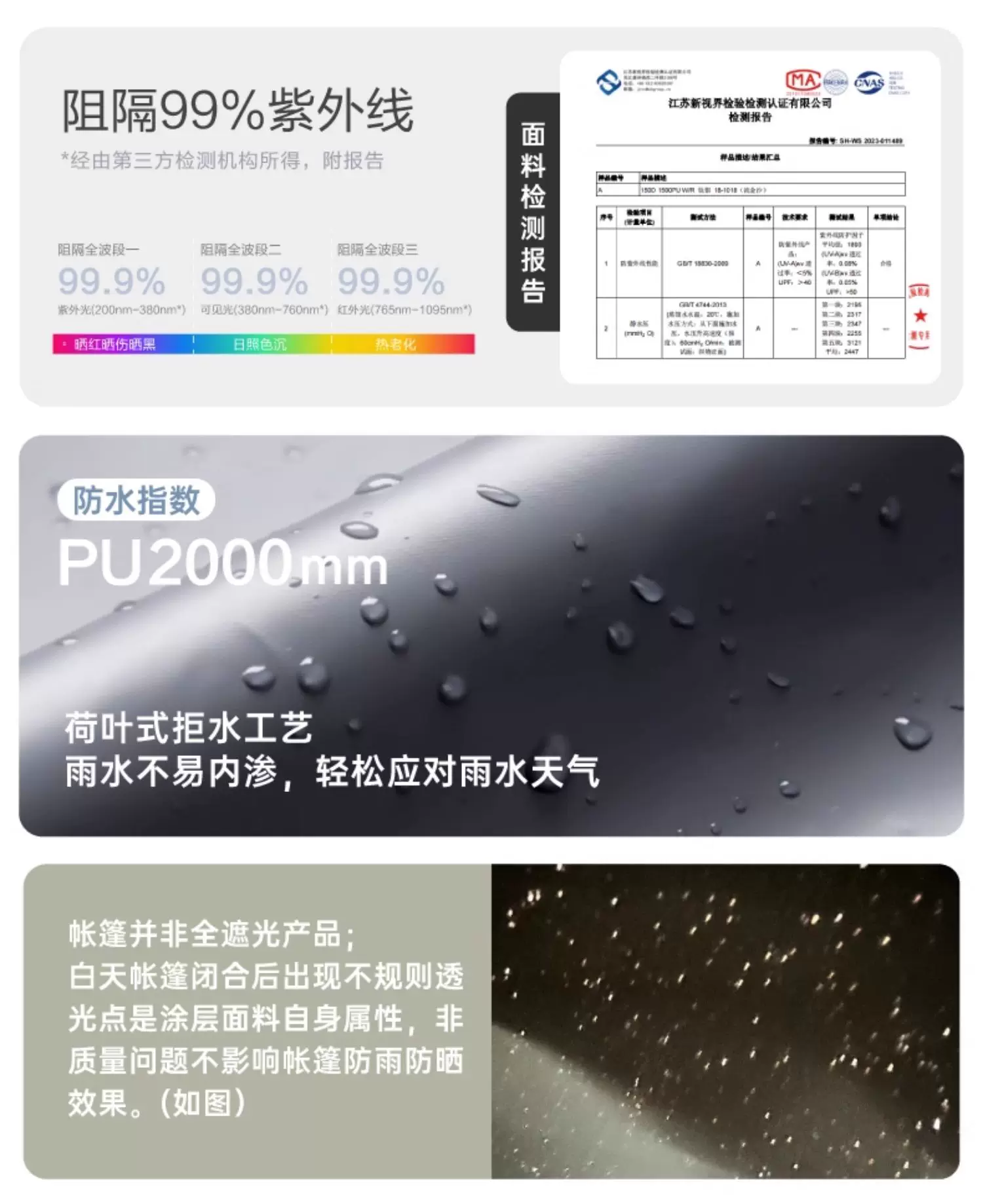

Titanium-silver coating, 99% UV blocked
A multi-layer fly: PU waterproofing, a titanium-silver heat barrier, a blackout layer and a lotus-effect repellent finish. Rain beads and runs off.
Not a full blackout — closed up in daylight you will see pinpoints of light through the coating. That is normal for coated fabric and does not affect the rain or sun performance.

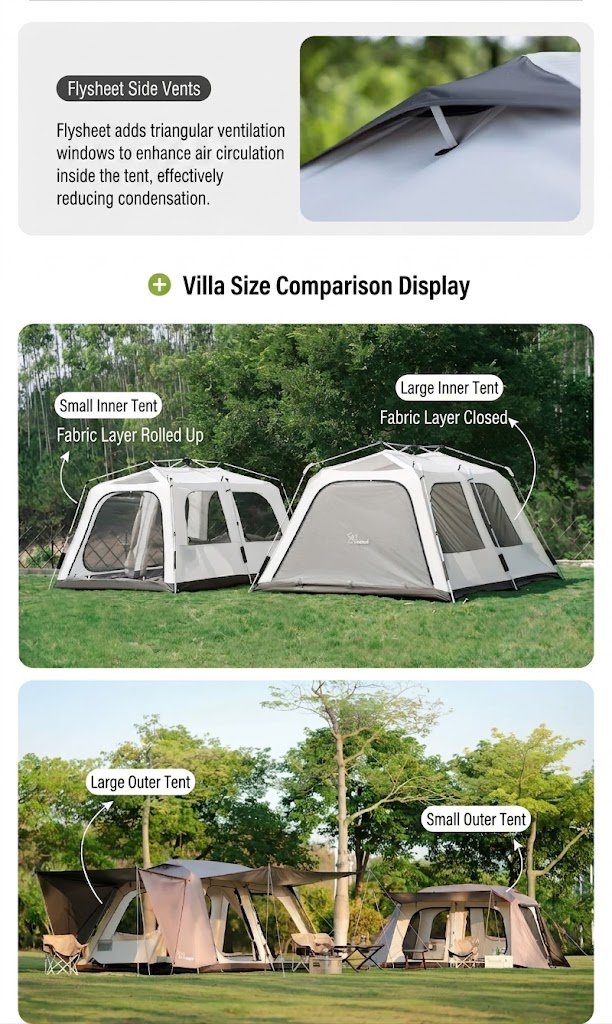

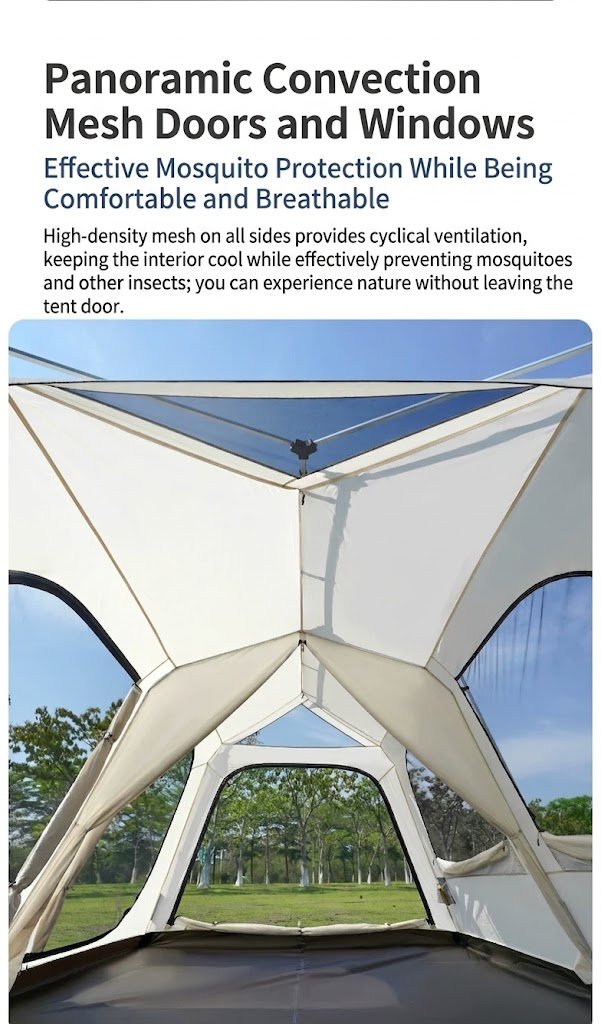

Frame and air

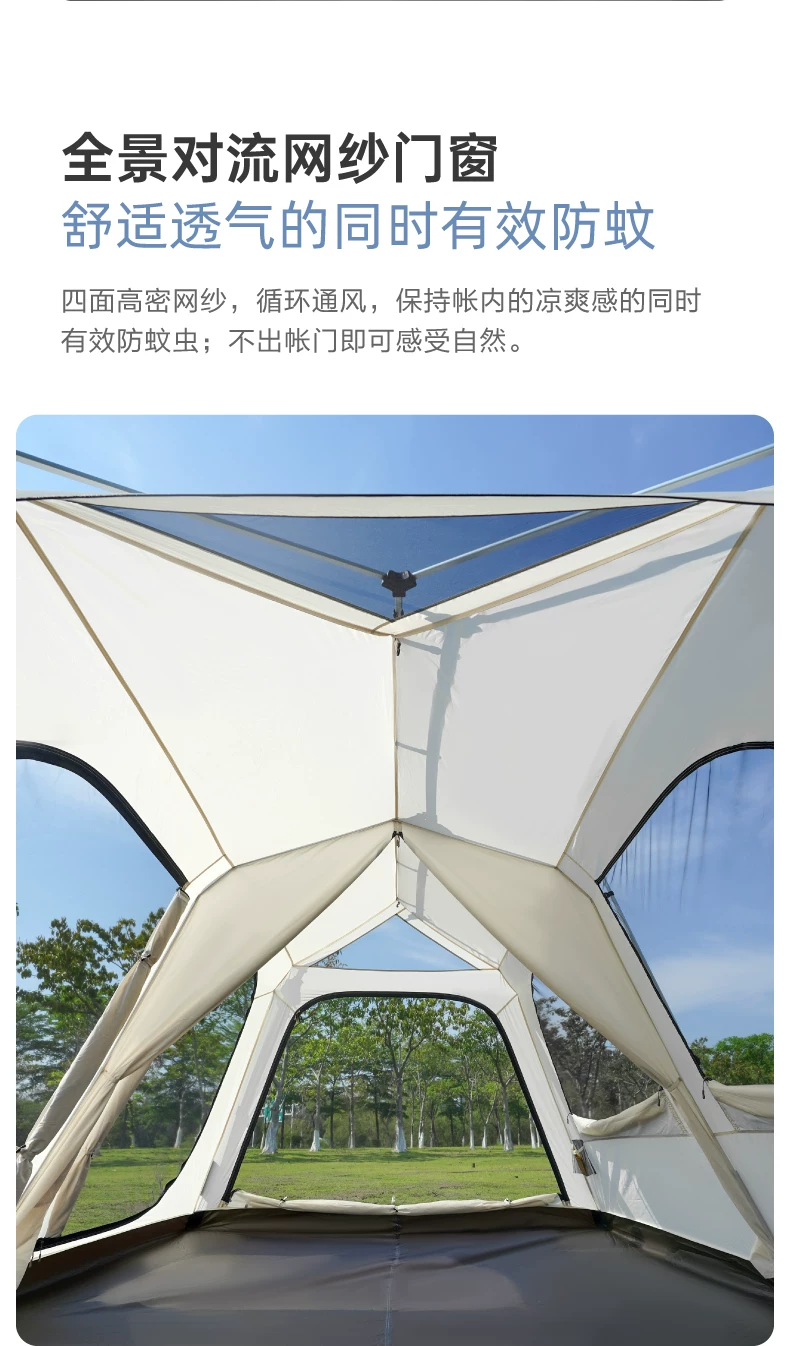

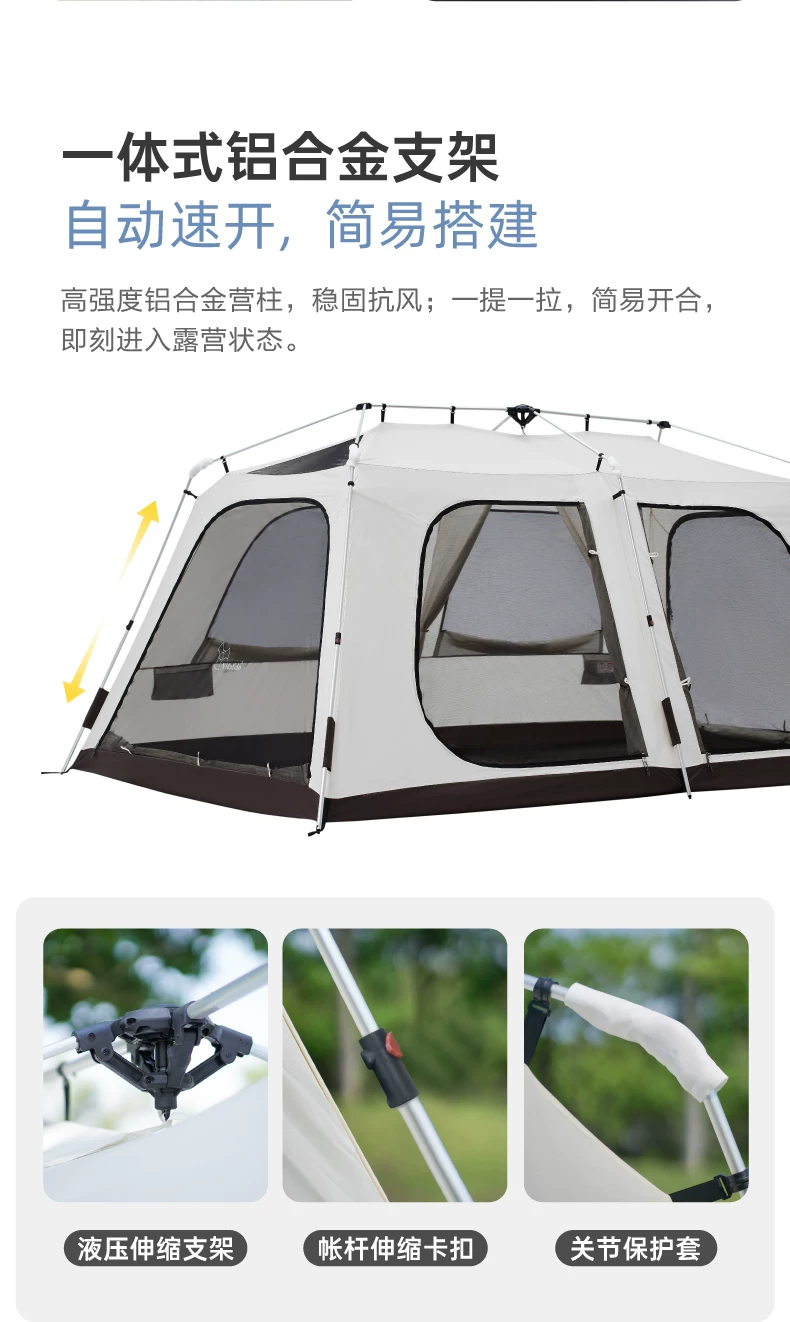

Aluminium, with vents that work
High-strength aluminium poles with hydraulic telescoping legs and protected joints. Triangular vents in the fly plus full-height mesh on all four sides keep air moving and cut condensation.
Details

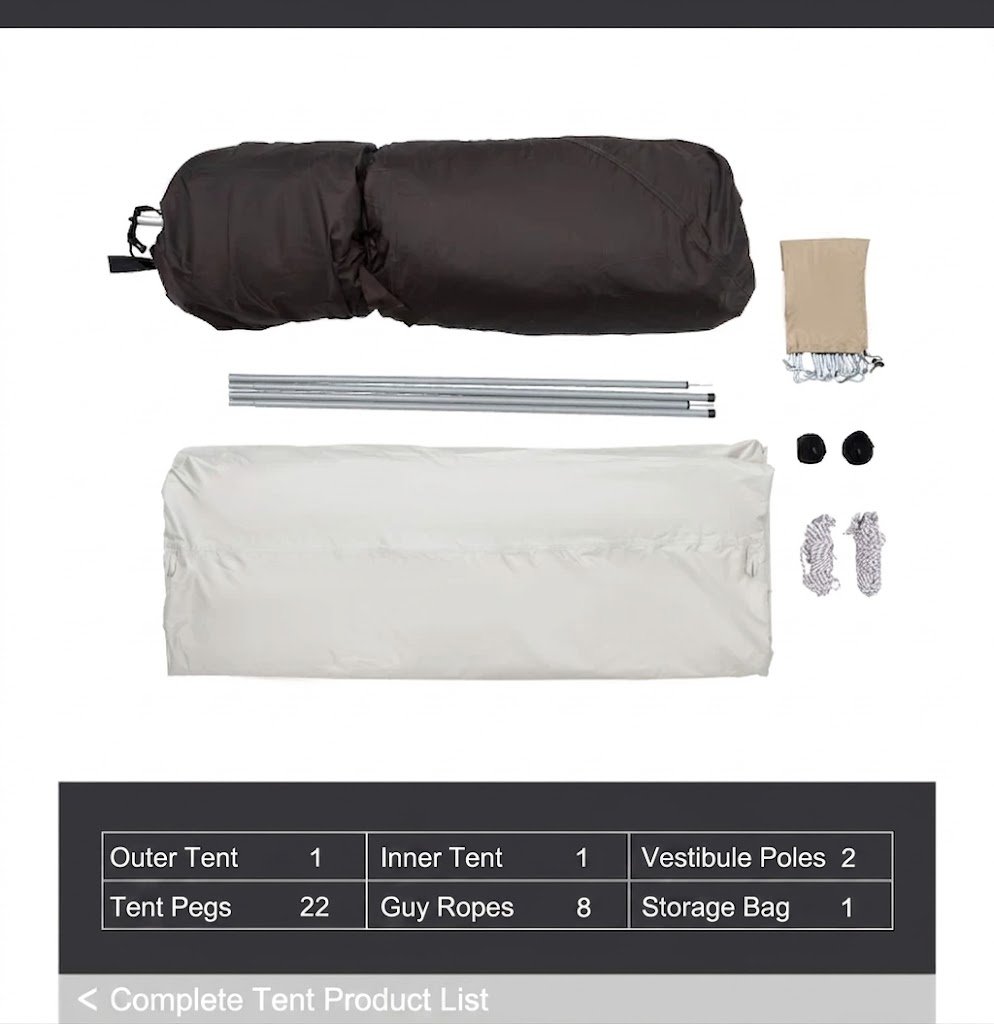

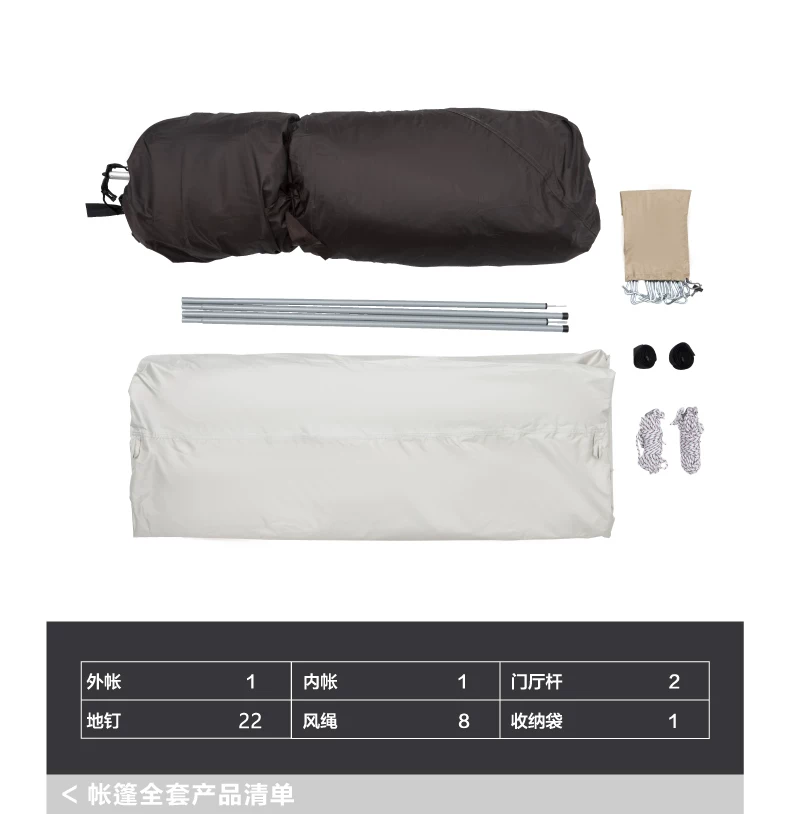

And what comes in the bag

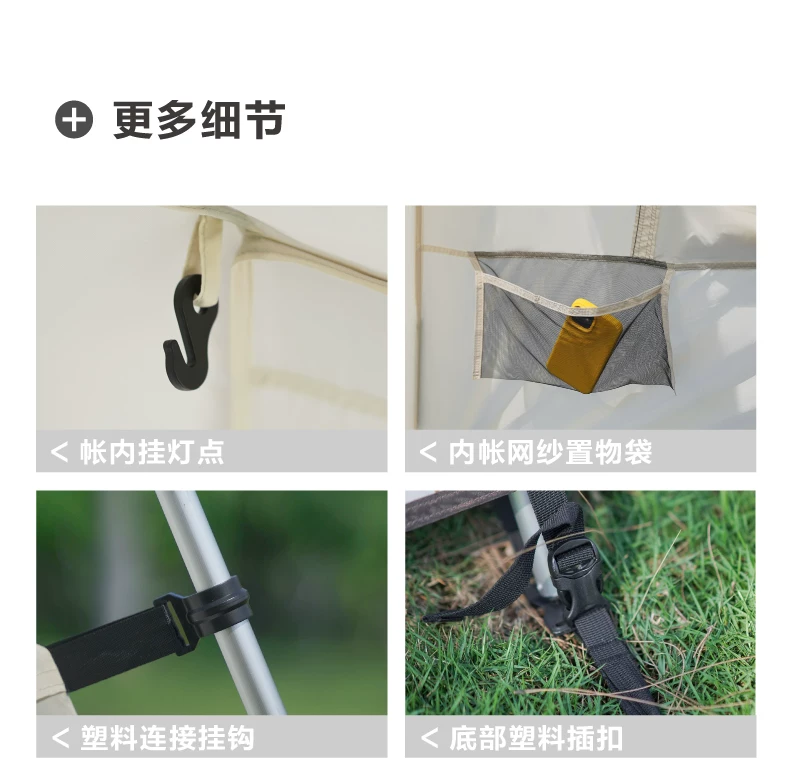

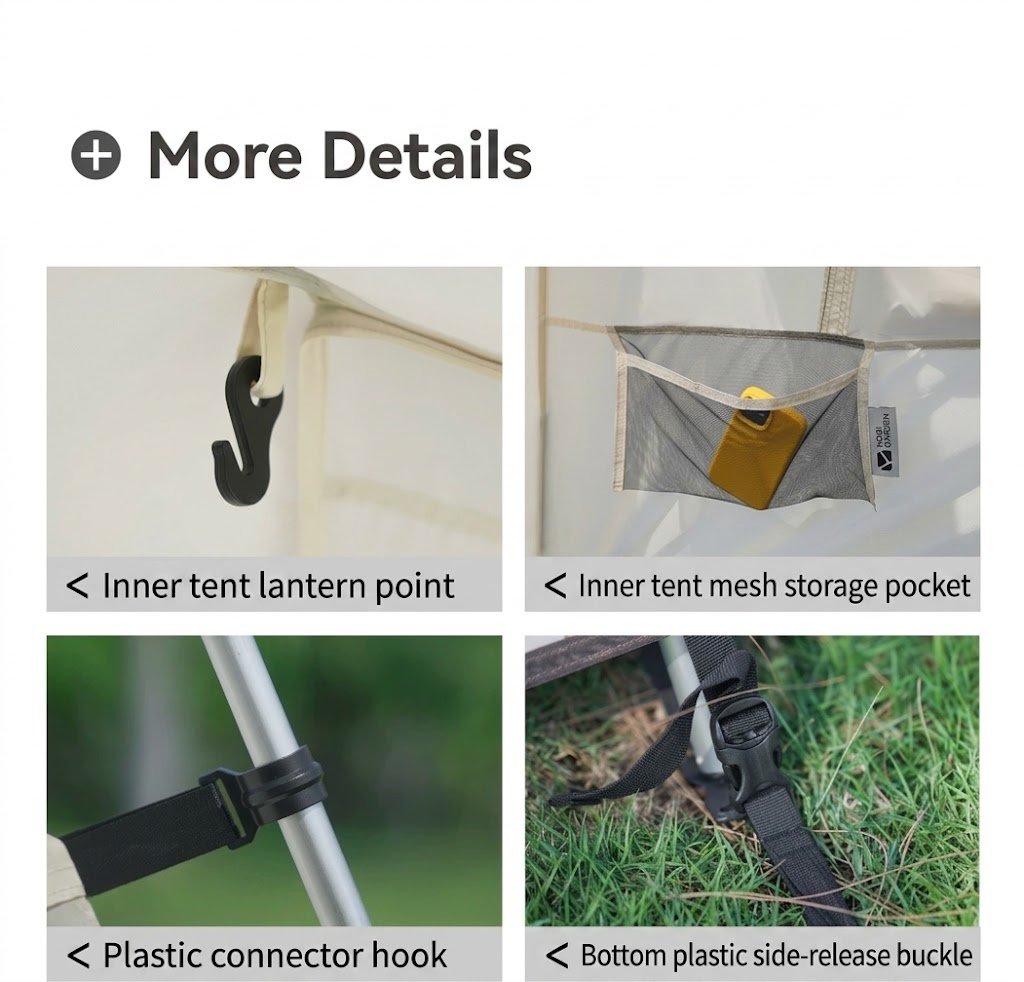

Lantern loops, mesh pockets, connector hooks and base buckles. Fly, inner tent, poles, porch poles, stakes, guylines and carry bag.
Transport

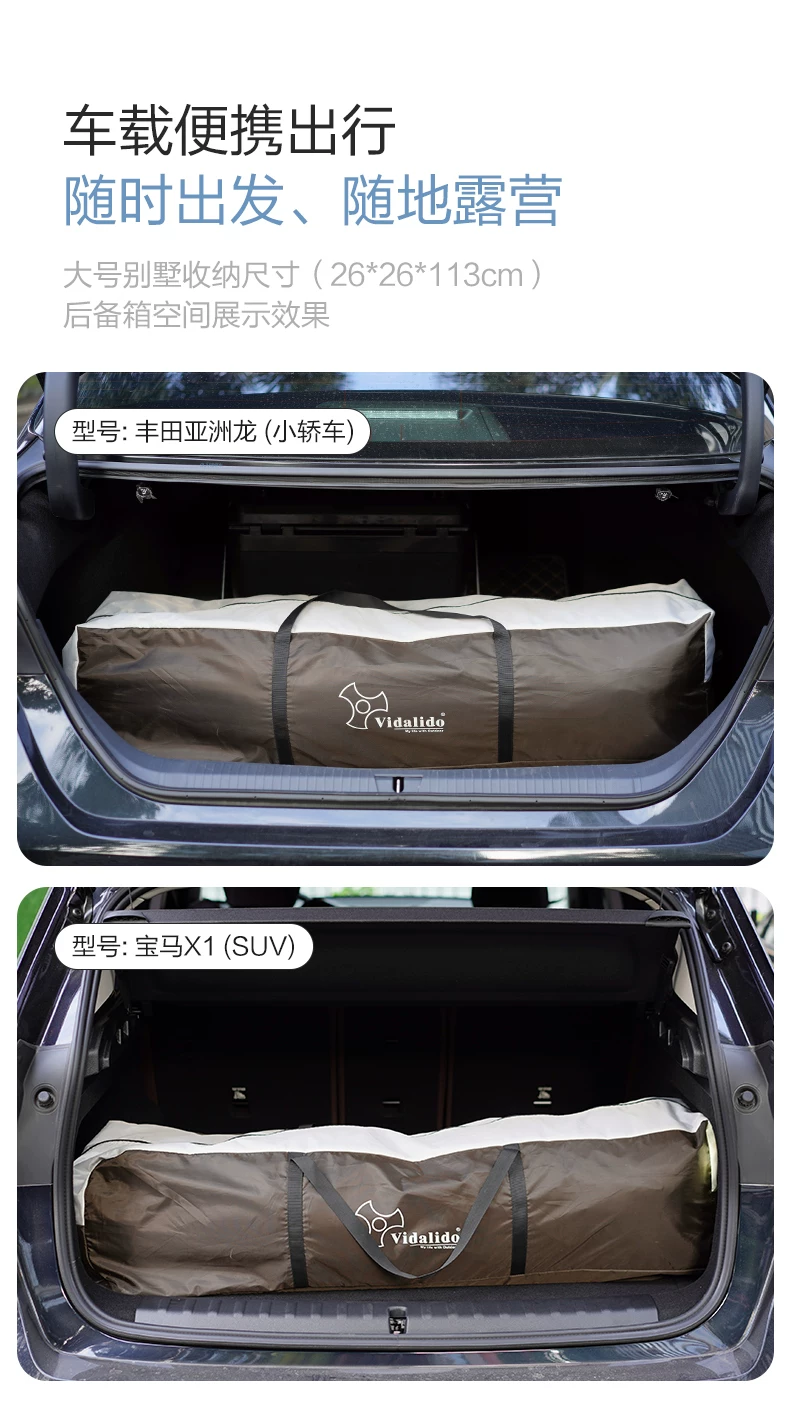

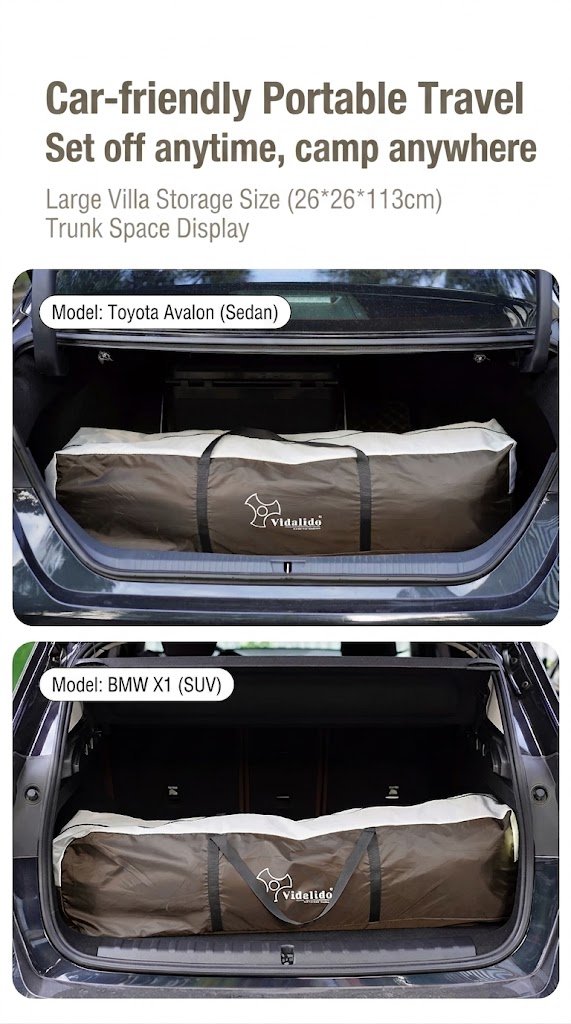

Fits a car boot
Packs to a single roll — 101 cm for the small, 113 cm for the large. Shown in a sedan and an SUV.

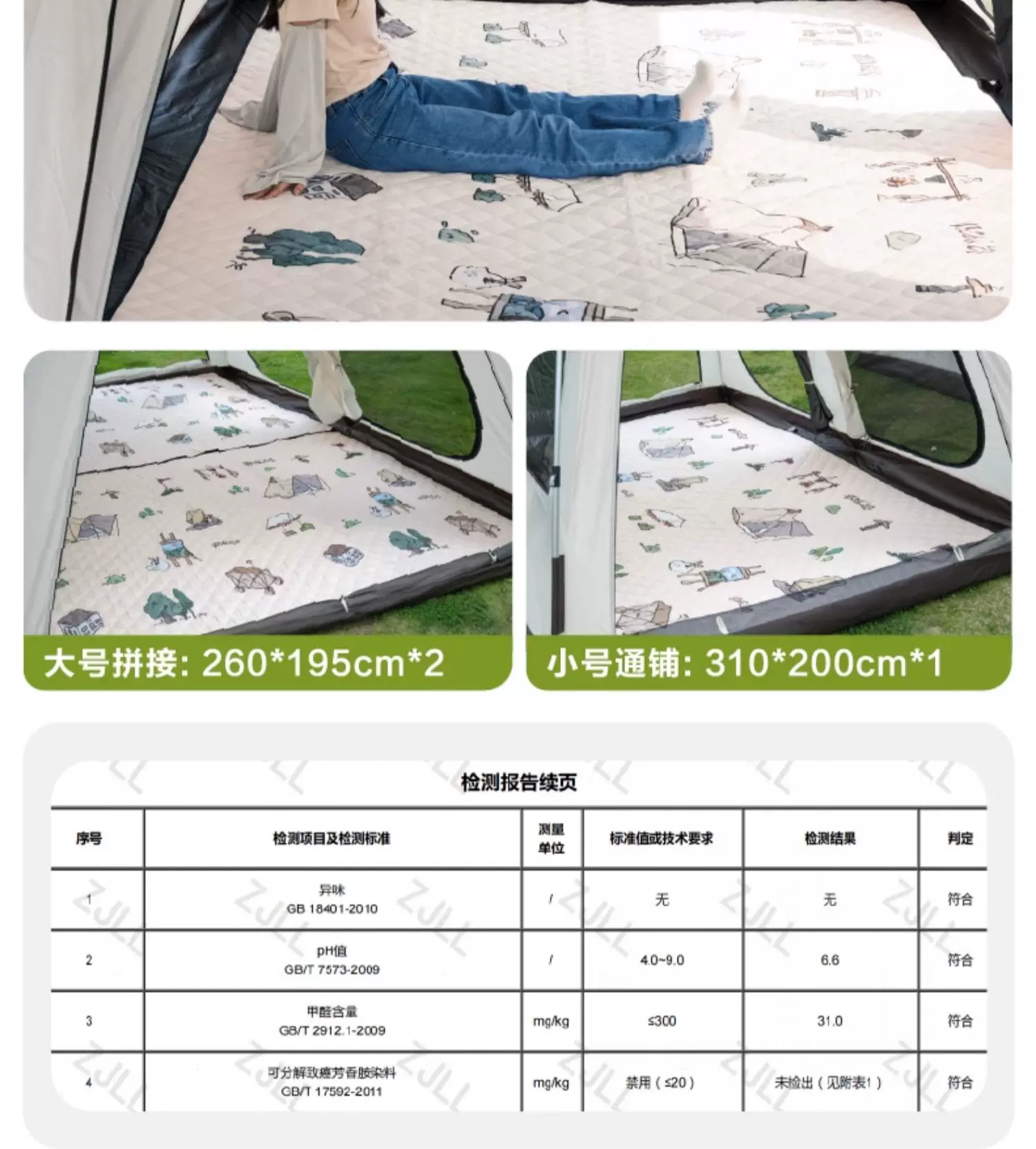

Pairs with

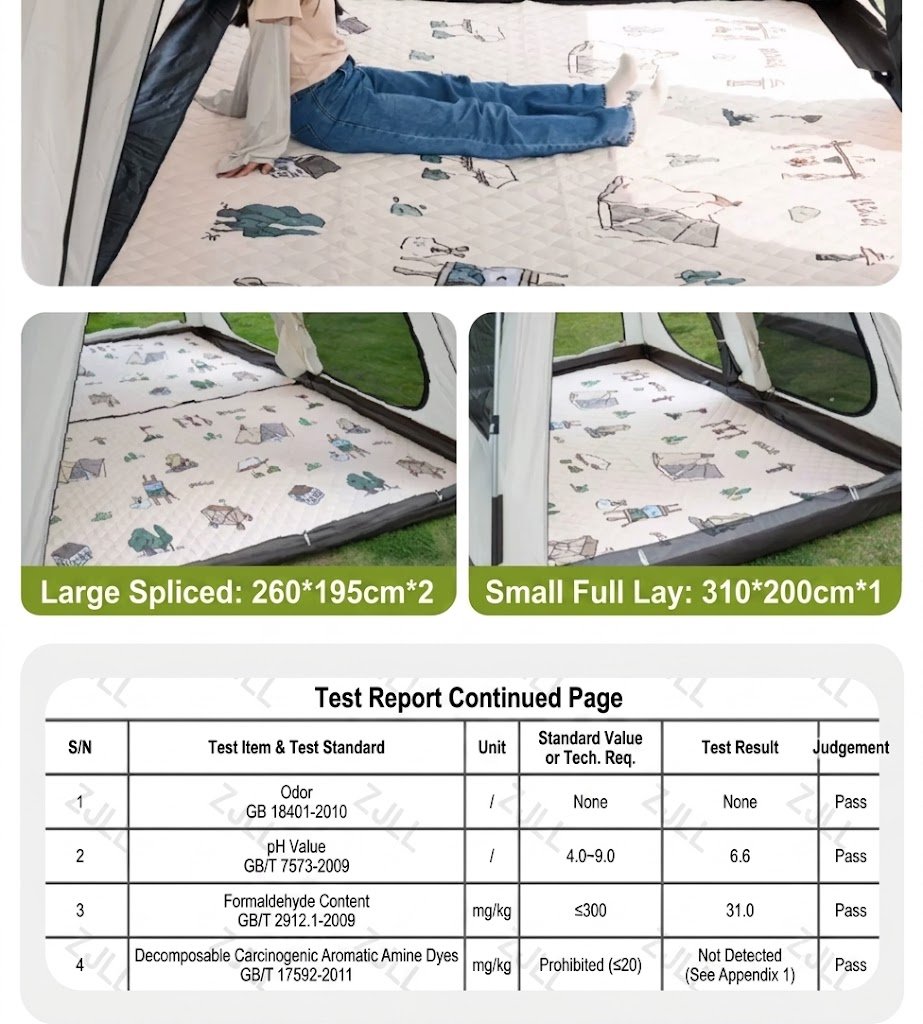

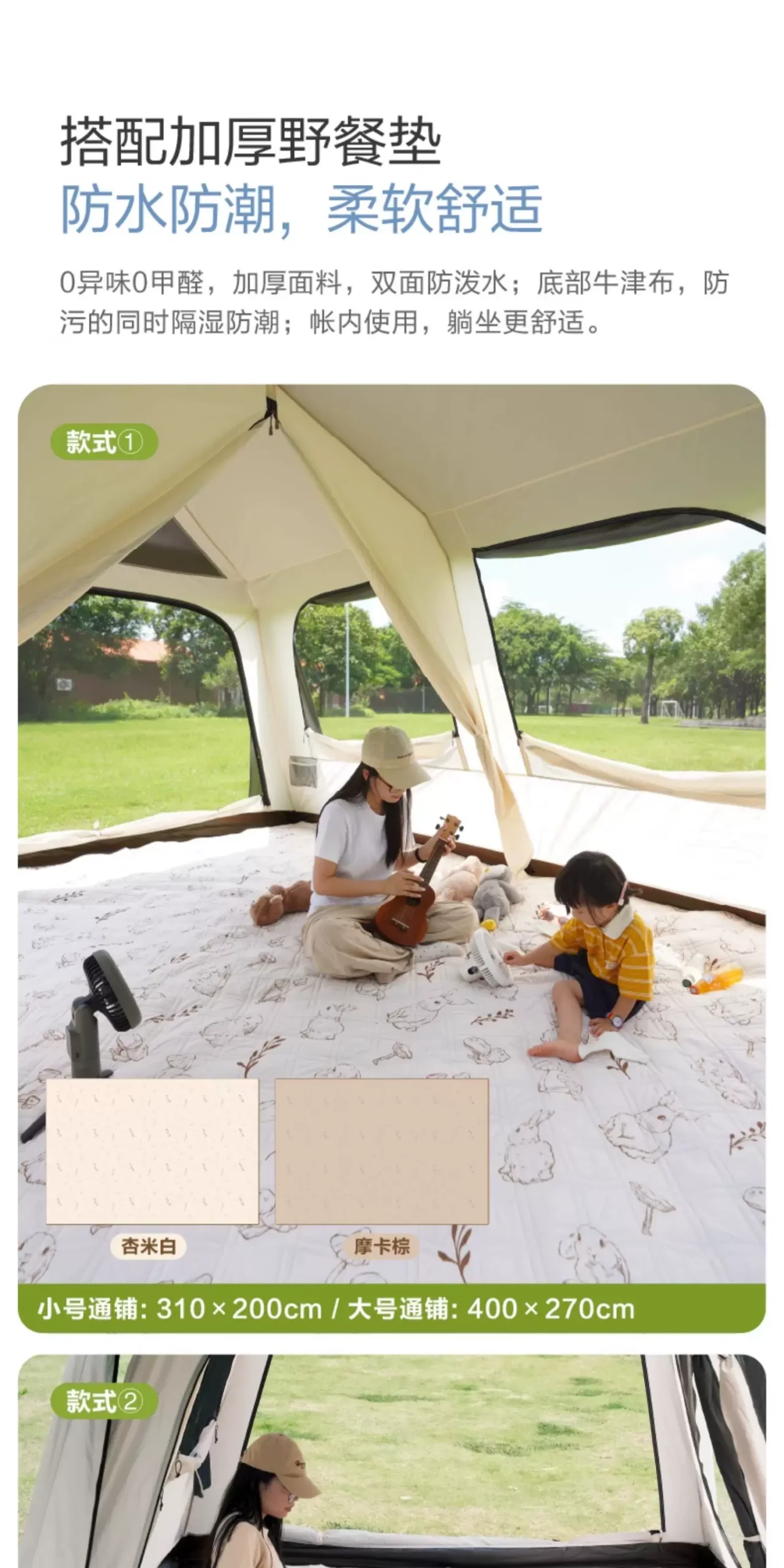

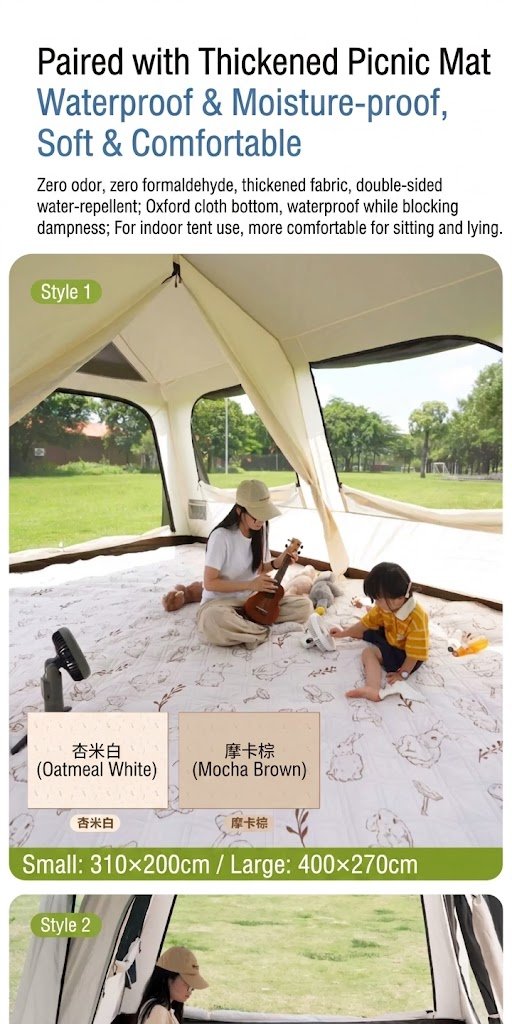

The thick picnic mat
No odour, no formaldehyde, water-repellent both sides with an Oxford base against damp ground. Sold separately.

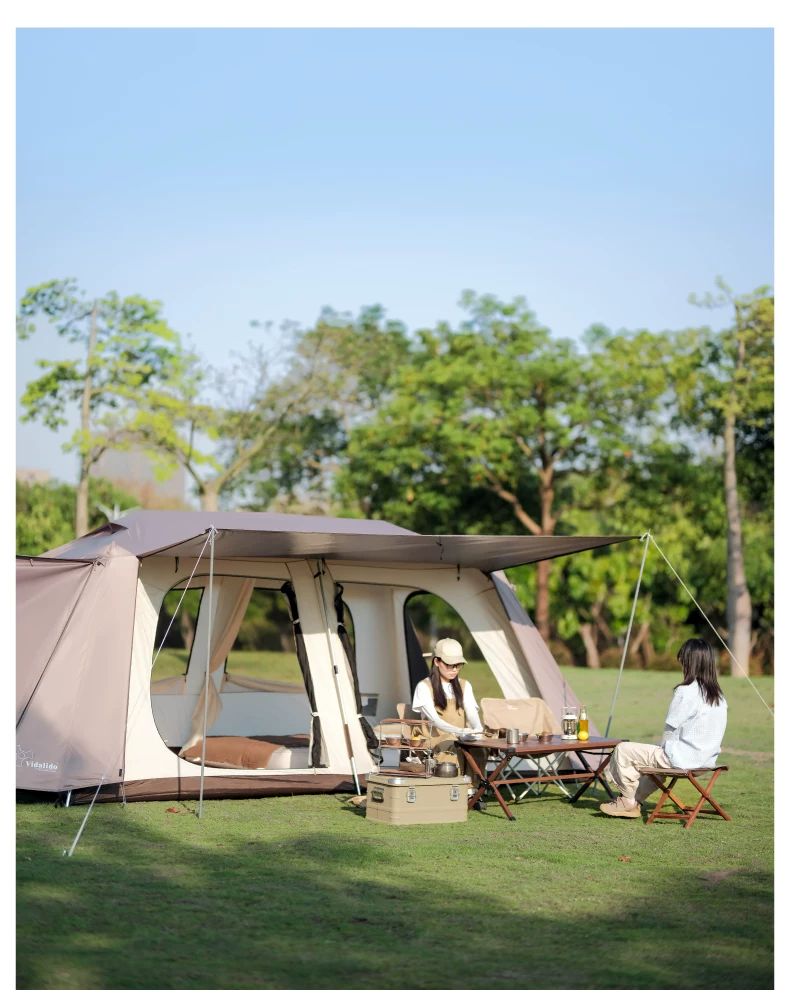

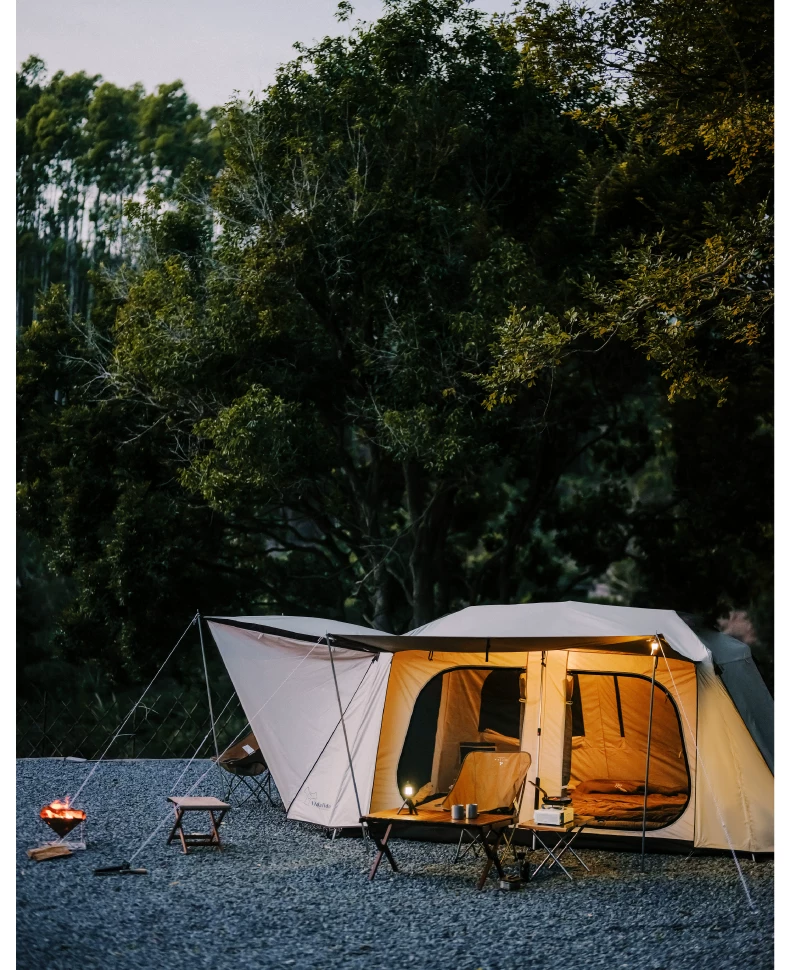

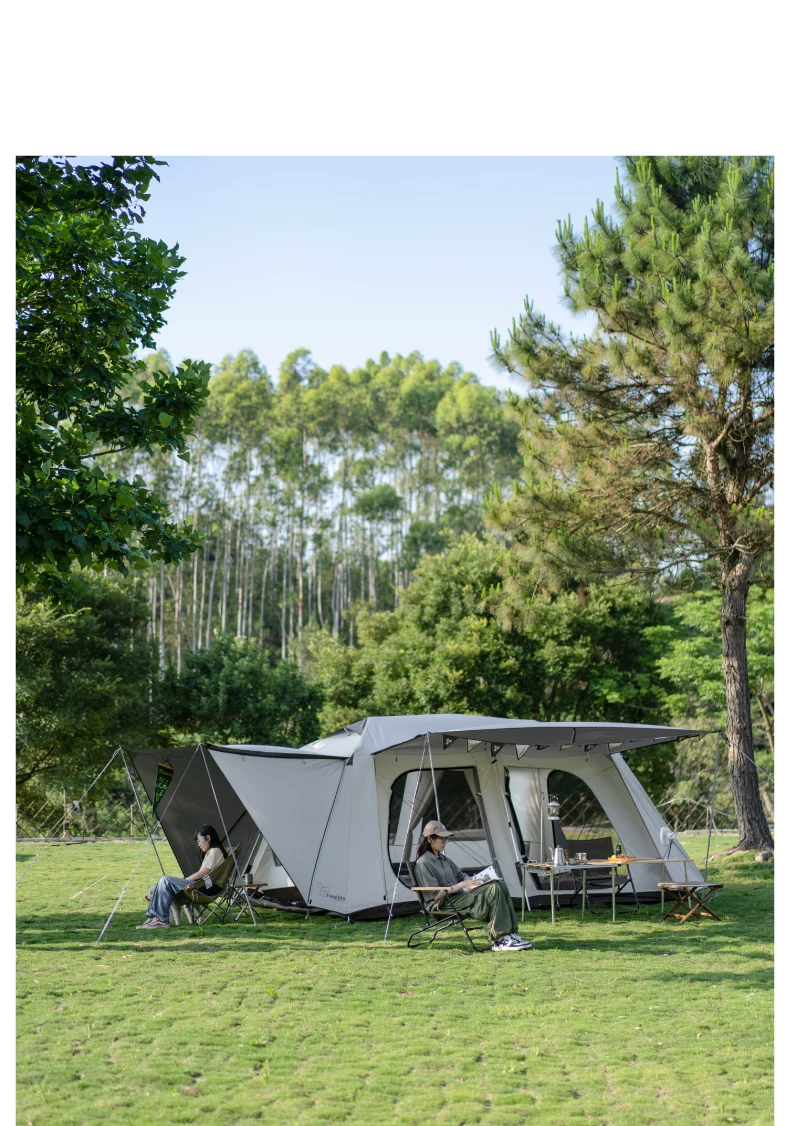

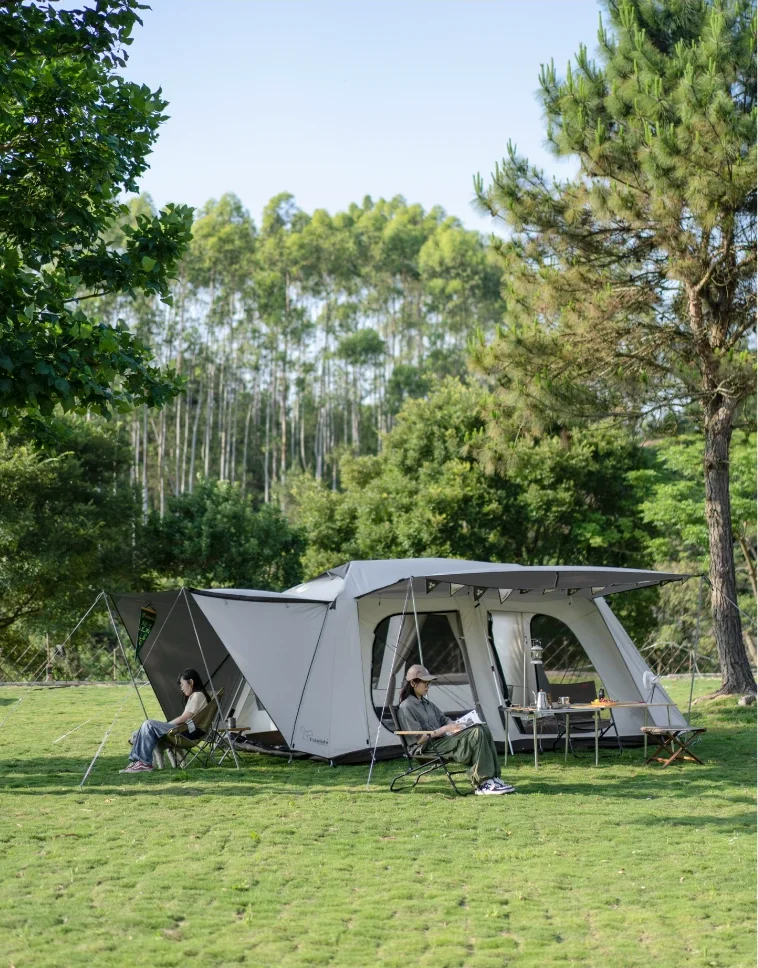

In the field
Specifications
| Fly | 150D titanium-silver blackout, high waterproof |
|---|---|
| Inner tent | 150D high-density mesh |
| Floor | 200D high waterproof |
| Frame | Aluminium alloy, auto-open |
| Wind rating | Up to force 5 |
| UV block | 99% |
| Usable area | Approx. 26 m² with all porches out |
Questions
How long does setup actually take?
What is the difference between Small and Large?
Is it fully blackout?
How much wind can it take?
Do the porch poles come with it?
How do I look after it?
Vicore 系列
两室四厅，四面门厅全开约 26 m²。一提一拉，架子就立起来了。
为“安营几天”而不是“天天拔营”做的自动别墅帐。大号带固定隔帘，是真正的两居室。
搭建
看一遍怎么搭
一体式铝合金架杆，提起中心、拉开四边、钉住四角。视频里是完整流程。
完整搭建教程
选尺码
小号还是大号
面料、架杆、涂层完全一样。大号多一道固定隔帘，挑高和占地面积都更大。
| 小号 | 大号 | |
| 外帐尺寸 | 420 × 230 × 180 cm | 500 × 280 × 190 cm |
| 内帐尺寸 | 320 × 220 × 170 cm | 400 × 270 × 180 cm |
| 挑高 | 170 cm | 180 cm |
| 隔帘 | None — one room | Fixed — two rooms |
| 睡眠模式 | 4–6 | 6–8 |
| 休闲模式 | 8–10 | 10–12 |
| 收纳尺寸 | 25 × 25 × 101 cm | 26 × 26 × 113 cm |
| 重量 | 14.7 kg | 17.4 kg |
| 门厅杆 | 16 mm × 1.7 m × 2 | 16 mm × 1.8 m × 2 |
| 售价 | $520 | $700 |
空间
前后左右四向延展
四面门厅全部撑开，占地面积翻倍——不只是一顶帐篷，而是一个遮风挡雨的户外庭院。

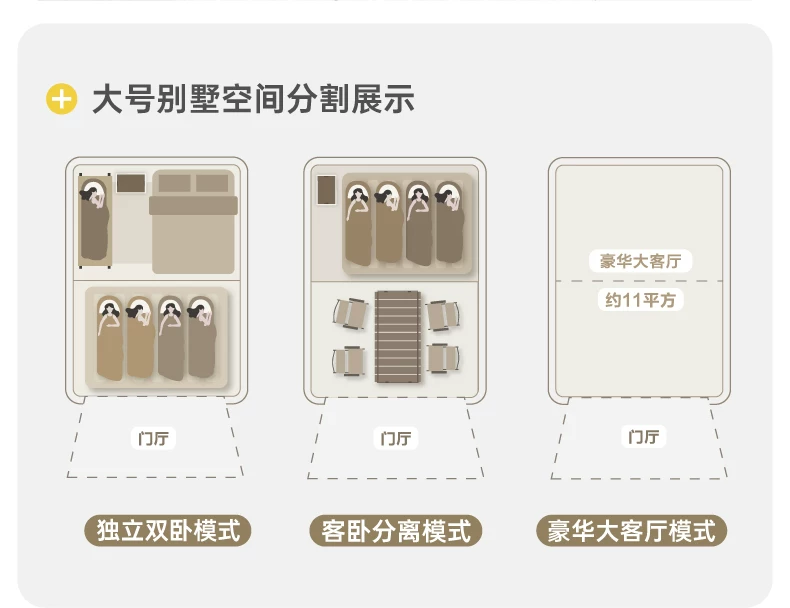

形态
想怎么开就怎么开
单独内帐、外帐闭合、前厅飞翼、门厅全开四种形态。大号可分独立双卧、客卧分离或豪华大客厅。

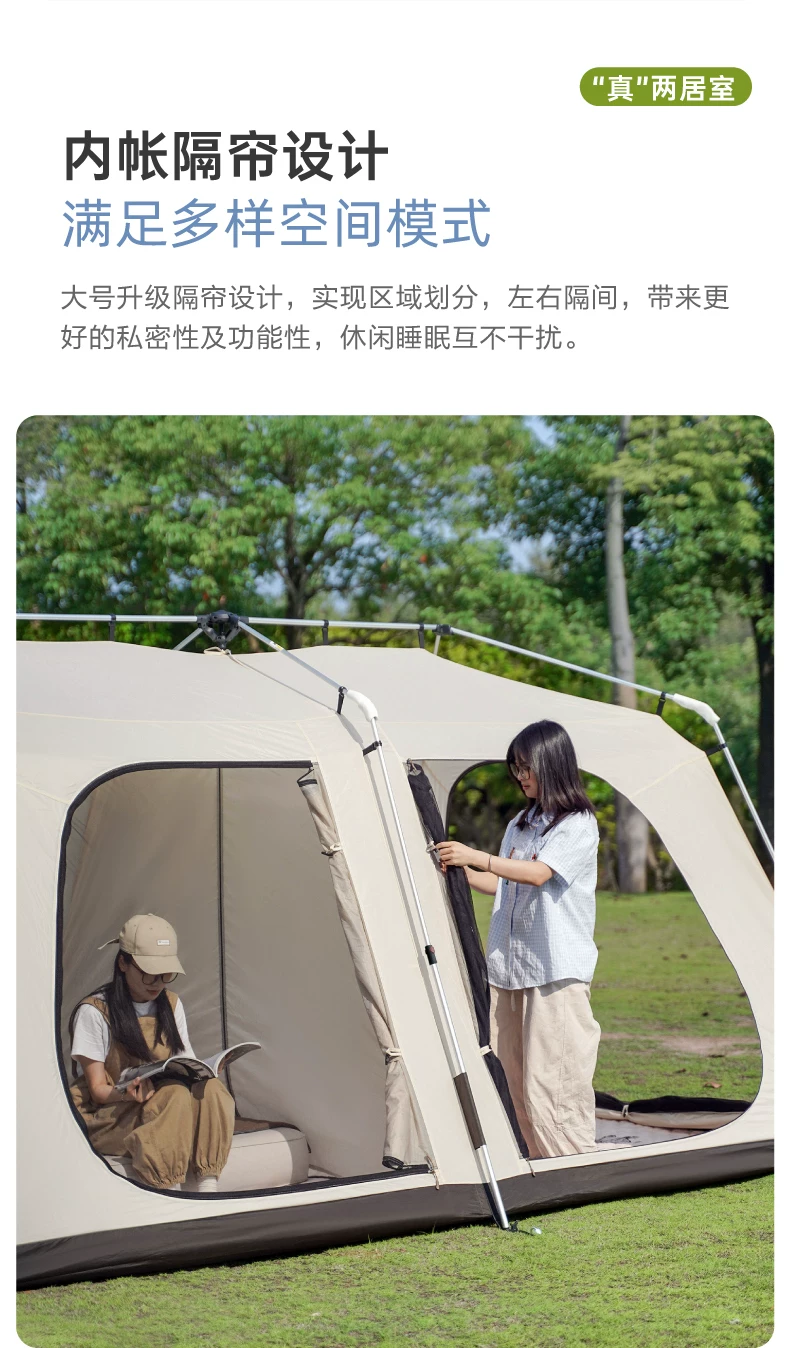

内部
约 10.8 m²，1.8 m 挑高
站着不用弯腰。大号的隔帘把内部分成两个封闭睡区，作息不同也互不干扰。
防晒防雨
钛银涂层，阻隔 99% 紫外线
多层外帐：PU 防水层、钛银隔热层、遮光层、荷叶防泼水层。雨水成珠滑落。
不是全遮光产品——白天闭合后会看到不规则透光点，这是涂层面料的固有属性，不影响防雨防晒。
架杆与通风
铝合金，透气不闷
高强度铝合金营柱，液压伸缩支架，关节带保护套。外帐三角透气窗加四面落地网纱，循环通风，减少冷凝水。
细节
以及包里有什么
挂灯点、网纱置物袋、连接挂钩、底部插扣。外帐、内帐、架杆、门厅杆、地钉、风绳、收纳袋。
携带
后备箱装得下
收成一卷，小号 101 cm、大号 113 cm。图中为小轿车与 SUV 实拍。
搭配
加厚野餐垫
0 异味 0 甲醛，双面防泼水，底部牛津布隔湿防潮。单独销售。
实景
产品参数
| 外帐 | 150D 遮光钛银，强防水 |
|---|---|
| 内帐 | 150D 高密度网纱 |
| 帐底 | 200D 强防水 |
| 架杆 | 铝合金架杆，自动速开 |
| 抗风 | 可抗 5 级以内大风 |
| 紫外线阻隔 | 99% |
| 使用面积 | 四面门厅全开约 26 m² |
